Heavy Duty Crawler Boring Machine Fast Moving Wide Application

Name: Heavy Duty Crawler Boring Machine Fast Moving Wide Application
Brand: Shitan
Price: 1 USD

Quality Heavy Duty Crawler Boring Machine Fast Moving Wide Application for sale

Brand Name : Shitan

Model Number : 200

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50 sets per month

Delivery Time : 5-8 work days

Packaging Details : Plastic film and Standard export wooden box

Product name : Crawler drilling rig

Track size : 2.3 * 1.65m, grounding length 1.6m

Track specifications : 350 * 90 * 54

Platform size : 3.3 * 1.85m

Tower height : 6.5m

Load capacity : 476, 137, 191, 339, 612 r/min

Vertical Shaft Speed (Forward Rotation) : 1100 r/min (High Speed Gear)

Diesel engine : L28 type (electric start), 20 KW

Dimensions (diesel engine model) : 1790 × 1100 × 1500 mm

Contact Now

High Efficiency Crawler Drill Rig All Terrain Stable Performance

Product Overview

Crawler drilling rig is a self-propelled drilling equipment with a crawler chassis and full hydraulic drive. Its core advantages are strong terrain adaptability, flexible movement, and stable construction. It is widely used in geological exploration, water wells, foundation engineering, and mining scenarios.

Technical Specifications

Attribute	Value
Product Name	Crawler Drilling Rig
Drilling Way	Rotary
Geological Adaptation	Soil, Rock, Hard Rock
Usage	Soil Sample
Track Machine Weight	3300 KG
Track Machine Size	3300mm * 1850mm * 2000mm
Track Specifications	350 * 90 * 54
Tower Height	6500mm
Exploration Hole (50mm Drill Pipe)	Opening: 150mm, Final: 91mm, Depth: 240m
Water Well Hole (50mm Drill Pipe)	Opening: 325mm, Final: 219mm, Depth: 120m
Basic Hole (60mm Drill Rod)	Opening/Final: 600mm, Depth: 60m
Vertical Shaft Speed (Forward Rotation)	1100 r/min (High Speed Gear)
Maximum Torque	400 N·m
Electric Motor	15kw
Diesel Engine	1115
Dimensions	1800 * 800 * 1200 mm
Whole Machine Weight	750 kg

Main Features
All terrain access: No need to harden the road surface, operations can be carried out in mountains, forests, riverbanks, mining areas, and tunnels, with flexible transitions.
Efficient and stable: low center of gravity+track support, minimal construction vibration, precise hole positioning; Fully hydraulic power, high torque, high drilling efficiency.
Multi functional adaptation: interchangeable drill bits/processes to meet various needs such as geological coring, water wells, pile foundations, anchoring holes, gas drainage holes, etc.
Time and labor saving: self-propelled, no need for lifting, fast transition, short auxiliary time; Hydraulic operation, low labor intensity.

Common applications

Geological exploration: core drilling, soil sampling, mineral survey.
Water well engineering: civil/industrial water wells, drought resistant wells, with a diameter of 100mm to 300mm and a depth of tens to hundreds of meters.
Basic engineering: building pile foundation, roadbed reinforcement, slope anchoring, tunnel pipe shed holes.
Mining/underground: gas drainage, grouting fire extinguishing, coal seam water injection, water exploration holes (explosion-proof models used in coal mines).

Product Gallery

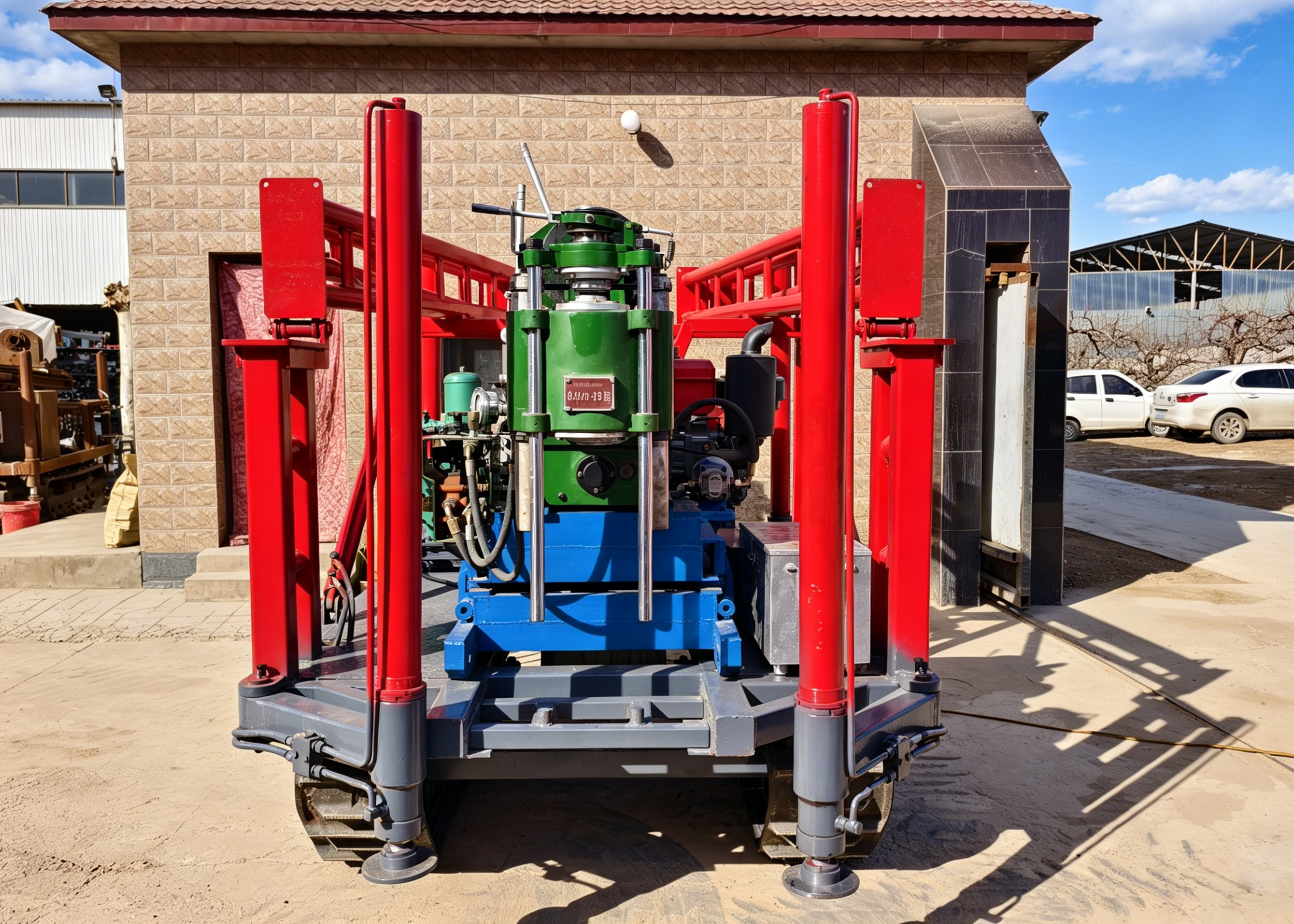

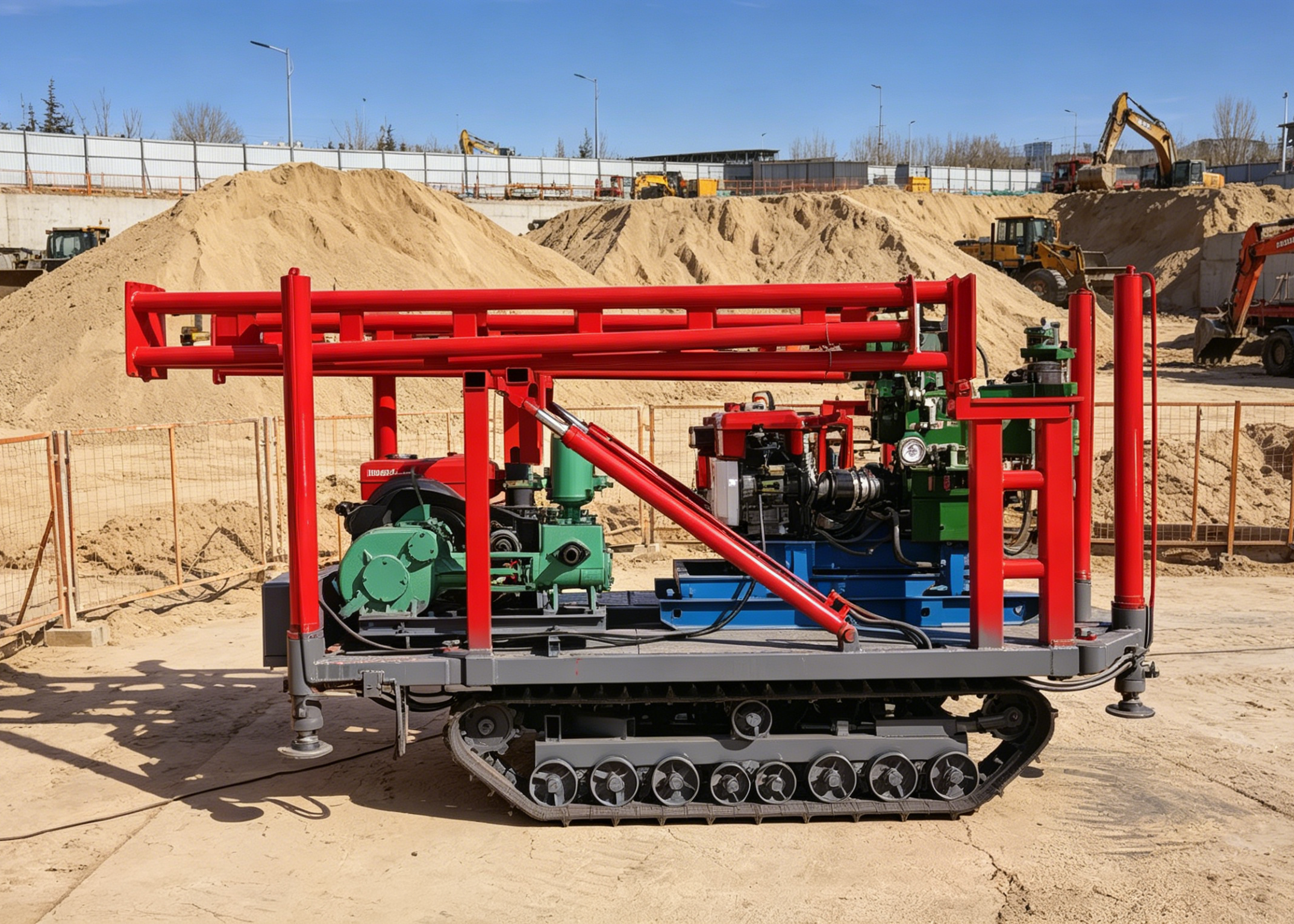

Heavy Duty Crawler Boring Machine Fast Moving Wide Application

Heavy Duty Crawler Boring Machine Fast Moving Wide Application Images
